In the world of storage, logistics, and retail display, the strength and durability of shelving systems are paramount. A crucial element that adds structural rigidity and load-bearing capacity to shelves is the shelf stiffener. JUGMUG RollForming, a pioneer in roll forming technology, introduces its advanced Shelf Stiffener Roll Forming Machine—a high-performance, automated solution designed to manufacture stiffeners with unmatched accuracy, speed, and consistency. Whether you're producing heavy-duty warehouse racks or elegant retail shelves, JUGMUG’s roll forming technology is engineered to meet the demands of today’s industrial standards.
What is a Shelf Stiffener Roll Forming Machine

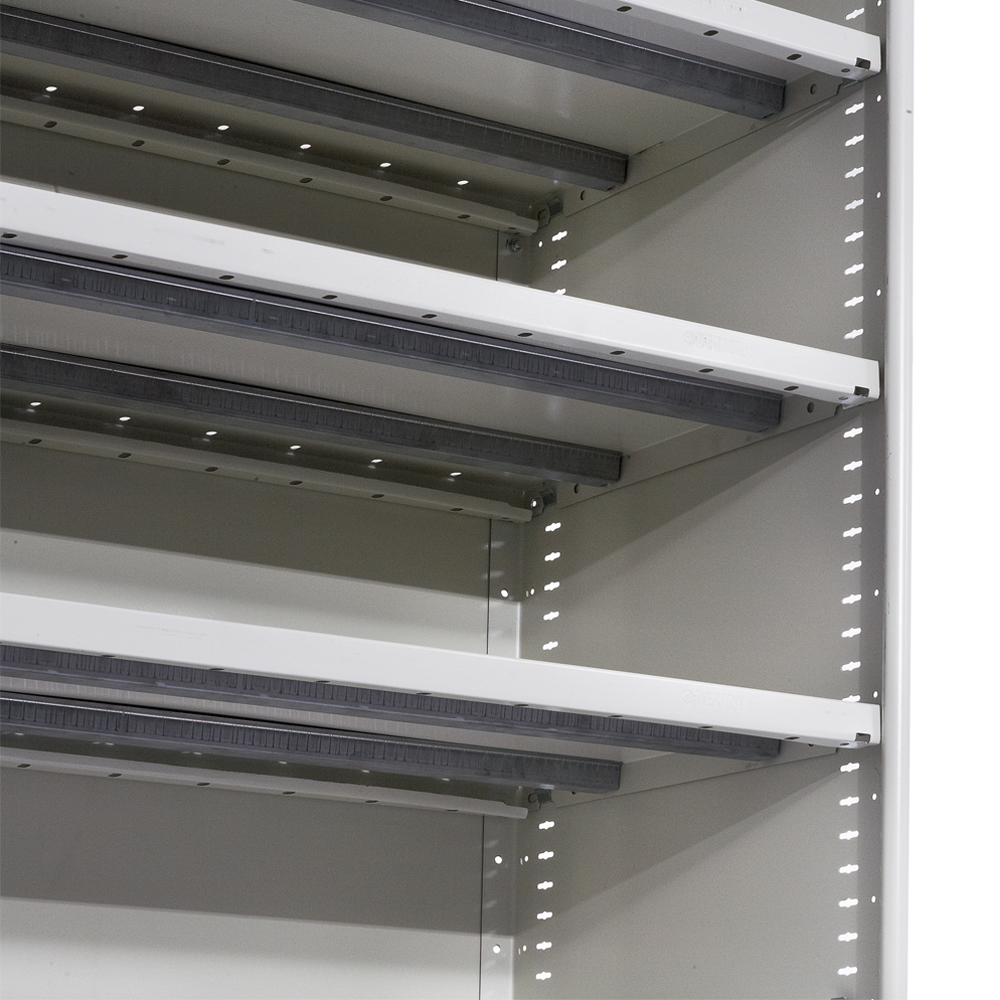

A Shelf Stiffener Roll Forming Machine is a specialized industrial system used to fabricate long, narrow metal profiles that are fixed underneath shelving panels to improve strength and load resistance. These machines work by feeding a coil of steel or galvanized sheet through a series of rollers that gradually shape the metal into a precise cross-section, without heat or welding. These stiffeners can have multiple shapes such as hat channels, omega profiles, or custom geometries depending on the shelf design and load requirements. JUGMUG’s machine ensures exact repeatability in every profile even in high-volume production environments.
Stiffener Rollforming Machine.
Key Features of JUGMUG’s Shelf Stiffener Roll Forming Machine
Precision Roll Tooling
JUGMUG engineers the roller dies with high-grade alloy steel using CNC machines for perfect shaping. Each station progressively bends the metal to achieve the desired profile without any cracks or deformities.
Robust Frame Design
The machine is built on a solid steel base frame with side walls and column supports that withstand continuous vibrations and ensure long-term structural integrity.
High-Speed Operation
JUGMUG’s shelf stiffener line is capable of producing profiles at speeds up to 20–30 meters per minute depending on the profile shape and material thickness.
Servo-Based Cutting System
Equipped with a servo-controlled flying shear or hydraulic post-cutting unit the machine ensures accurate length cutting without halting the production process.
User-Friendly Control Panel
The PLC-based touchscreen HMI allows operators to control all machine parameters set product lengths batch sizes and adjust operational speeds. Real-time monitoring and diagnostics ensure zero downtime.
Coil Handling and Decoiling Unit
The decoiler unit handles large coils up to 5 tons and feeds the strip with auto-tension control for smooth operation reducing material wastage and manual error.
Applications of Shelf Stiffeners in Industrial and Commercial Spaces
Warehouse Racking Systems
Shelf stiffeners provide support for storing heavy pallets boxes and inventory items. These stiffeners are essential for high-load industrial storage.
Supermarket Shelving
Retail stores and supermarkets use decorative yet strong shelving systems. Stiffeners manufactured using roll forming enhance the aesthetic as well as the structural performance.
Modular Office Furniture
In office storage cabinets and lockers shelf stiffeners improve weight-bearing performance while keeping the design slim and minimal.
Library and Archive Storage
Long-span shelving in libraries or record rooms uses stiffened shelves to hold heavy stacks of books or files safely over time.
Why Choose JUGMUG RollForming for Shelf Stiffener Manufacturing
Customizable Design
Every client has specific requirements based on profile size material and production capacity. JUGMUG offers custom roll tooling and machine configurations tailored to your business.
Turnkey Solution
From coil loading to final profile cutting and stacking JUGMUG delivers a complete automated line with minimal human intervention.
Low Maintenance Long Life
JUGMUG’s machines are designed for long-term use with minimal downtime. Bearings rollers and gears are easy to replace and lubricate.
Local Support and Training
After installation JUGMUG provides on-site operator training and long-term service support across India and global markets.
Energy Efficiency
Modern roll forming uses low power compared to stamping or welding processes. JUGMUG’s machines are optimized to minimize energy consumption while maximizing output.
Technical Specifications Typical Range
Material CR Steel GI PPGI Stainless Steel
Thickness 0.5 mm to 2.0 mm
Width Up to 300 mm
Profile Types Hat Channel Box Channel Omega Custom
Line Speed 15–30 m/min
Roll Stations 12–20 varies by profile
Control System Siemens or Delta PLC with HMI
Cutting System Hydraulic or Servo Flying Shear
Power 10–25 HP depending on configuration
Future of Roll Forming in Storage Infrastructure
As warehousing e-commerce and retail infrastructure expand rapidly in India and across the globe the demand for robust yet lightweight shelving systems is expected to rise. With innovations in metal alloys digital controls and smart automation roll forming technology will play a vital role in the next generation of smart warehouse construction. JUGMUG is already preparing for this future by developing IoT-enabled roll forming lines that offer predictive maintenance remote diagnostics and cloud integration for large-scale manufacturers.
Conclusion:
If your business depends on high-quality high-volume shelf stiffener production there’s no better partner than JUGMUG RollForming. With a legacy of engineering excellence JUGMUG offers a durable efficient and scalable solution that transforms how shelf components are manufactured. From precision roll design to robust automation every machine is built to perform last and deliver maximum ROI. Join the many satisfied clients who trust JUGMUG for their stiffener roll forming machine needs and bring unmatched strength to every shelf you produce.
